All Pairwise Correlations for a Group of Neurons

The main idea presented here is that in many analyses you can specify multiple reference events and NeuroExplorer will display the results as rows or columns of graphs.

By the end of this tutorial, you will learn how to calculate all pairwise crosscorrelograms for a group of neurons.

Select File | Open menu command:

../_images/file_open.png

Select TestDataFile5.nex file and click OK in the Open dialog. NeuroExplorer will load the test data file:

../_images/test_file.png

Select analysis type by clicking the Crosscorrelograms line in the Analyses panel:

../_images/crosscorr.png

Click Multiple Reference Events (one for each column of graphs) and then click the Reference Events button:

../_images/corr_mult_ref.png

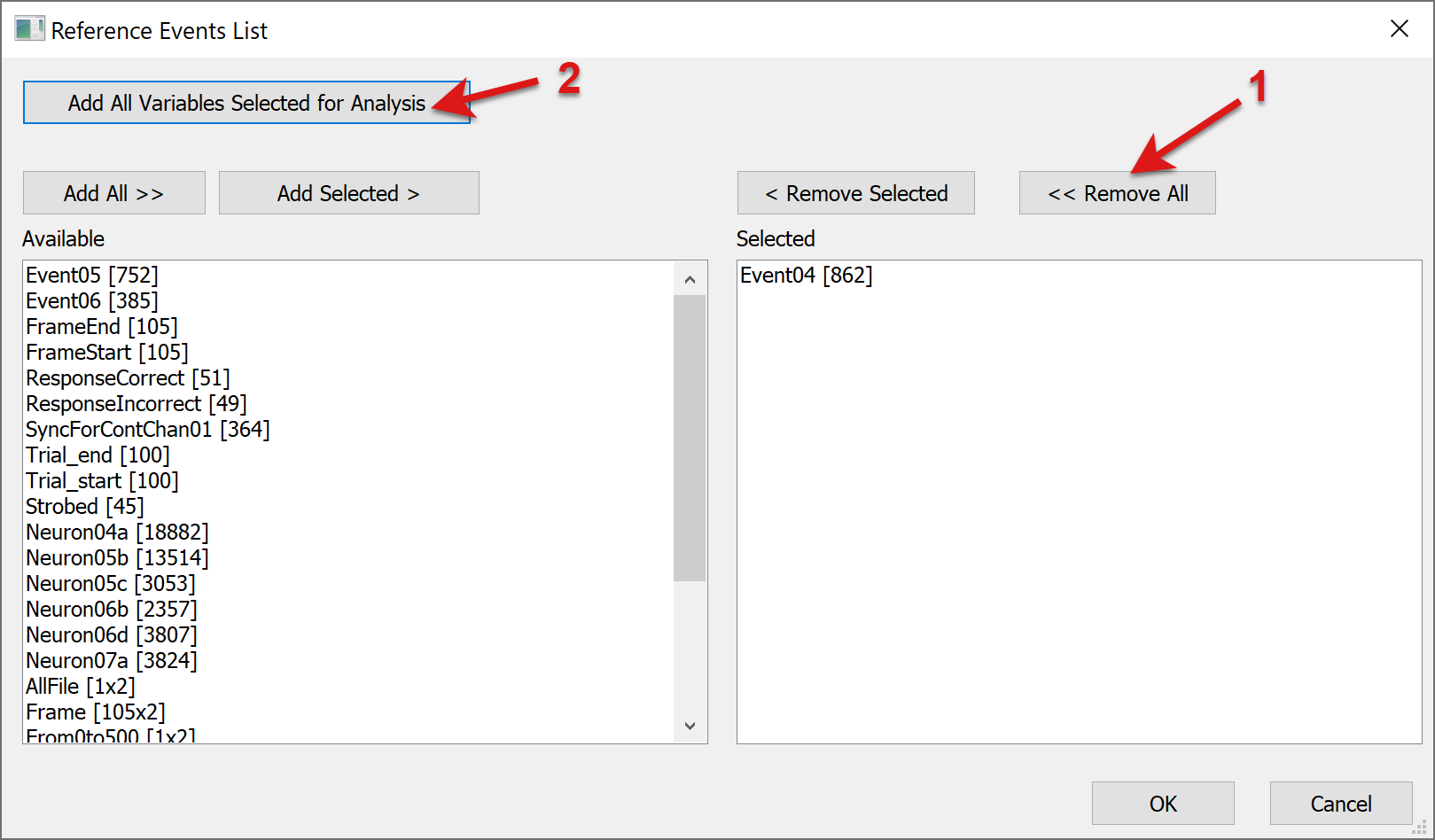

In the Reference Events List dialog, click Remove All and then click Add All Variables Selected For Analysis button:

../_images/corr_mref2.png

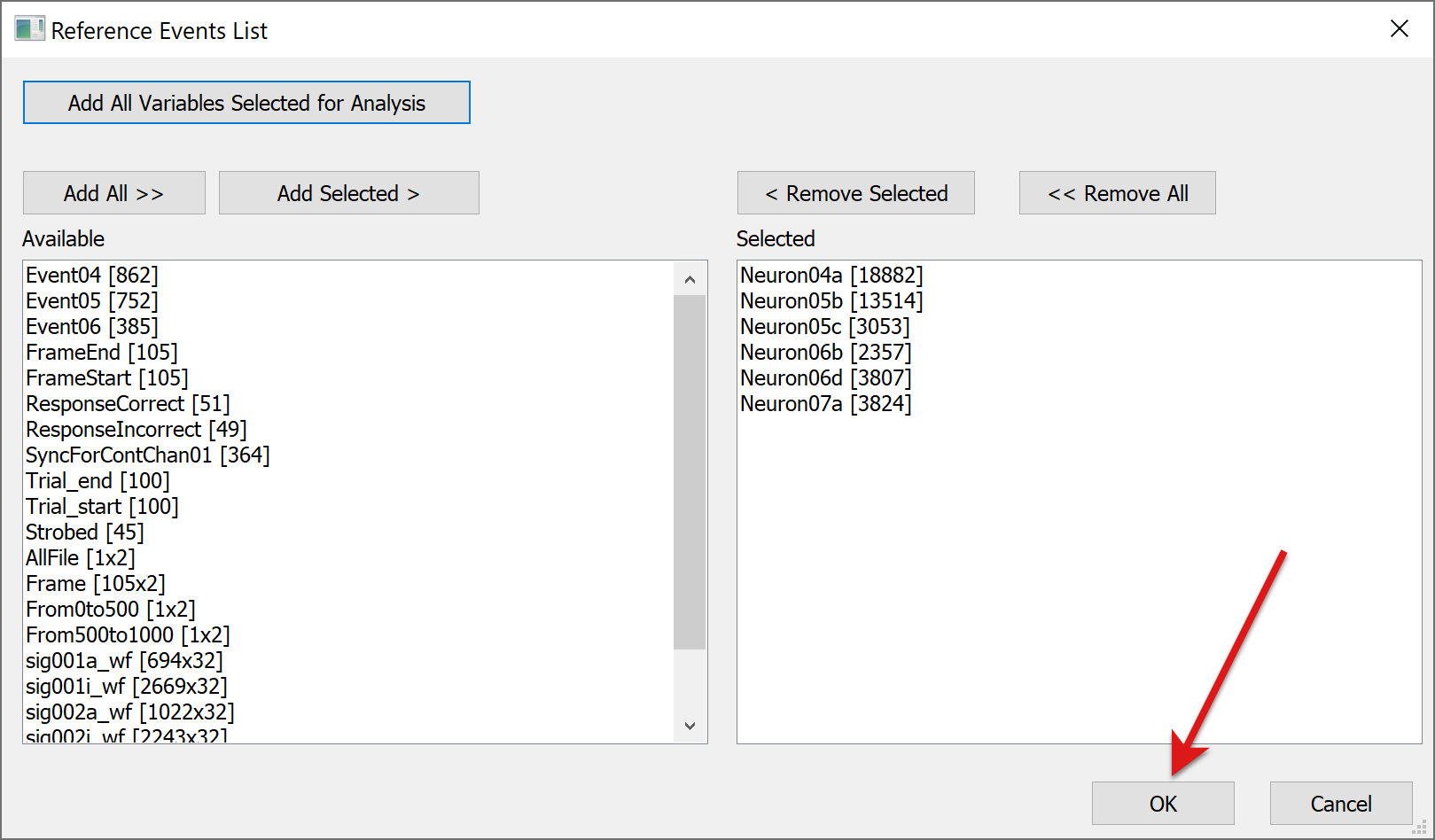

Now we have all the neurons selected as reference events. Click OK button in the Reference Events List dialog:

../_images/corr_mref3.png

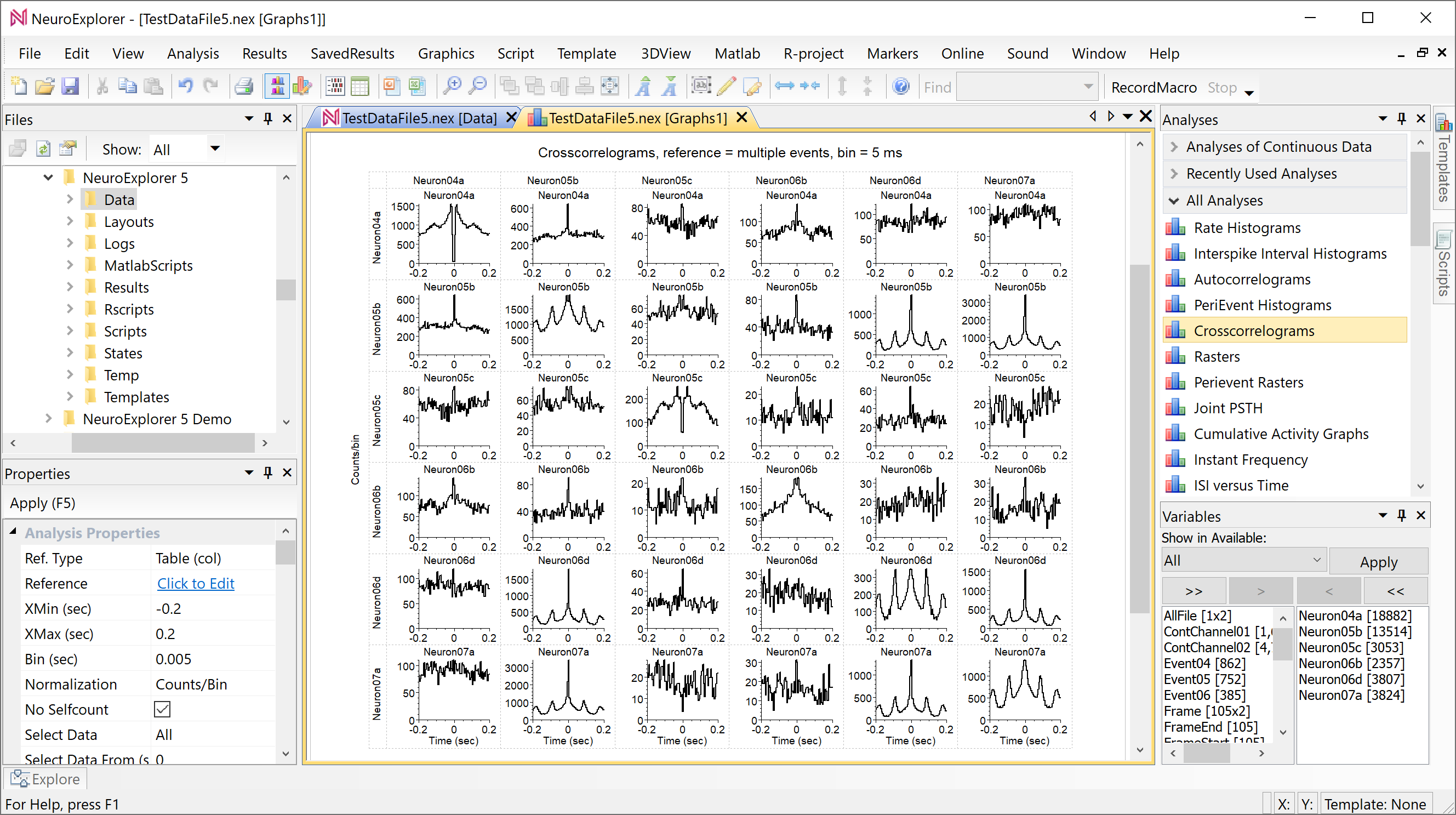

Click OK in the Analysis Properties dialog. NeuroExplorer opens a new window with graphical analysis results.

../_images/corr_mref_res.png

We calculated all 36 pairwise crosscorrelograms for 6 neurons.
